The Complete Guide to Weeping Tile Systems: Interior vs. Exterior
/A damp, musty basement is more than just an annoyance; it’s a sign of a serious problem that can lead to structural damage, mould growth, and a significant loss of usable living space. At the heart of most effective basement waterproofing solutions is a crucial component: the weeping tile system. This often-overlooked network of pipes is your home's first line of defense against the relentless force of hydrostatic pressure and groundwater.
However, when it comes to addressing a water problem, homeowners are often faced with a critical decision: should they opt for an interior or exterior weeping tile system? Both methods are designed to manage water, but they differ significantly in their approach, cost, and effectiveness for different situations. In this comprehensive guide, we'll break down the pros, cons, and key differences between these two primary foundation drainage solutions to help you make the best decision for your home.
What is a Weeping Tile System and How Does it Work? (A Quick Refresher)
Before diving into the two types, let's quickly define what a weeping tile is. A weeping tile, also known as a french drain or perimeter drain, is a perforated pipe that runs along the perimeter of your home's foundation. Its purpose is to collect groundwater that accumulates around the foundation and direct it away to a safe discharge point, typically a sump pump or a municipal storm drain. By alleviating the buildup of hydrostatic pressure, it prevents water from being forced through cracks and porous concrete into your basement.
The Exterior Weeping Tile System: The Traditional Approach
The exterior weeping tile system is the most traditional and comprehensive method for managing water. It involves addressing the problem from the outside, at the source of the water infiltration.
The Installation Process (Excavation, Membrane, Tile, Gravel)
An exterior waterproofing and weeping tile installation is a significant undertaking. The process involves several key steps:
1. Excavation: The entire perimeter of the foundation is carefully excavated down to the footing. This requires heavy machinery and is a major construction project.

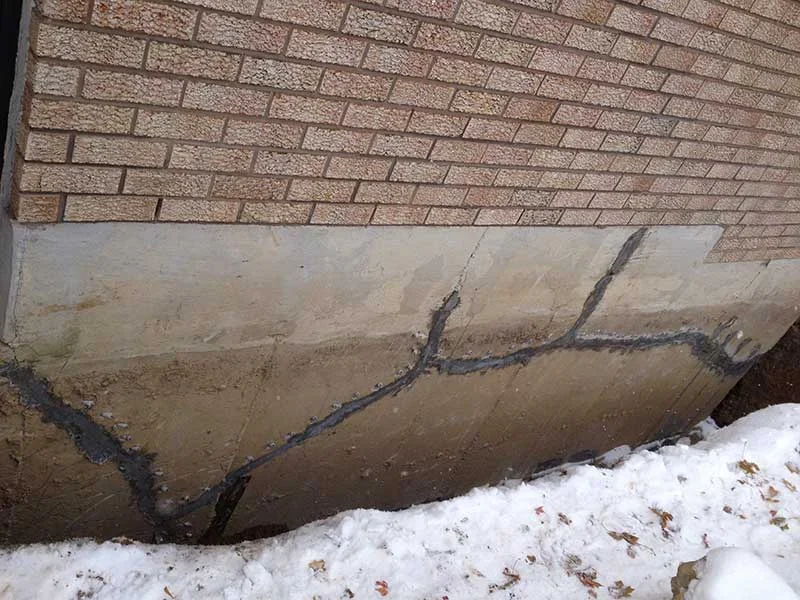

2. Cleaning and Preparation: The exposed foundation walls are thoroughly cleaned and repaired. Any existing cracks are sealed with hydraulic cement or polyurethane injections.
3. Waterproofing Membrane: A liquid or sheet-based waterproofing membrane is applied to the exterior of the foundation walls. This creates a continuous barrier that prevents water from seeping through the concrete.
4. Weeping Tile Installation: New perforated weeping tiles are laid around the perimeter of the footing. The pipes are covered with a filter cloth to prevent them from becoming clogged with silt.
5. Gravel and Backfill: A layer of clean, coarse gravel is placed over the weeping tile to provide a porous medium for water to drain into the pipes. The trench is then backfilled with the excavated soil.
Pros of an Exterior System (Stops water before entry)
Most Comprehensive Solution: This method addresses the problem at its source, preventing water from ever reaching the foundation walls.
Ideal for New Construction: It's the standard for new builds, as it's easiest to install before backfilling.
Increased Home Value: A properly executed exterior waterproofing project is a major upgrade that can significantly increase a home's value and marketability.
Protection for Foundation: It prevents water from constantly pressing against the foundation, reducing the long-term risk of structural damage.
Cons of an Exterior System (Cost, landscape disruption)
Higher Cost: The extensive excavation and labour involved make this a more expensive option.
Major Landscape Disruption: Your deck, patio, driveway, and all landscaping around the perimeter of your home will be affected and potentially destroyed.
Weather-Dependent: The work can only be done in favourable weather conditions, which can delay the project.

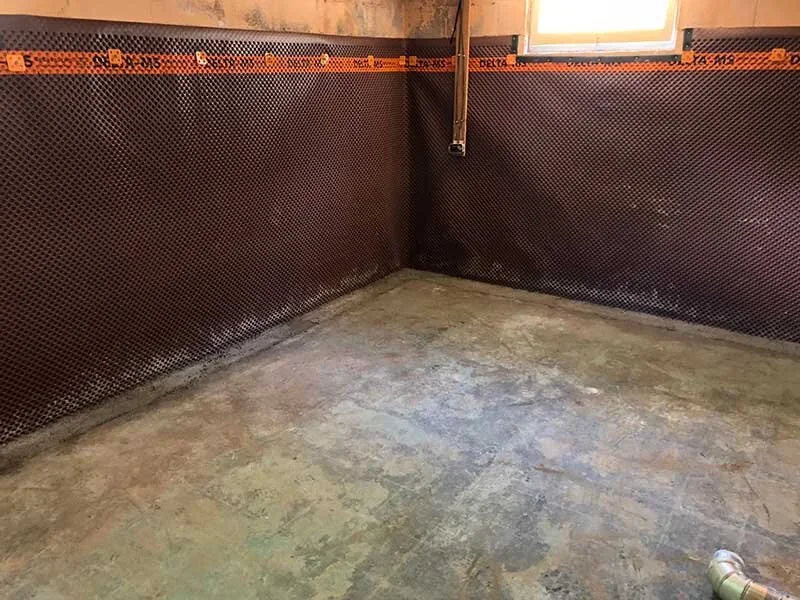

The Interior Weeping Tile System: The Modern Solution
The interior drainage system is an increasingly popular and effective solution for existing homes. Instead of stopping the water on the outside, it manages the water after it has entered the foundation.
The Installation Process
An interior weeping tile installation is a much less invasive process:
1. Trenching: A trench is dug around the inside perimeter of the basement, exposing the footing where the wall meets the floor.
2. Drainage and Tile: The concrete is removed, a layer of gravel is laid down, and a perforated drainage pipe is installed.
3. Connection to a Sump Pump: The new drainage system is connected to a sump pump, which collects the water and pumps it safely out of the basement and away from the foundation.
4. Finishing: The trench is then filled with new concrete, restoring the basement floor.
Pros of an Interior System
Less Invasive: There is no exterior digging, so your yard, landscaping, deck, and patio are left completely undisturbed.
Cost-Effective: The labour and machinery costs are significantly lower, making this a much more affordable solution.
Year-Round Installation: The work is done inside your home, so it can be performed in any season, regardless of the weather.
Addresses Hydrostatic Pressure: It is particularly effective at managing hydrostatic pressure, which is a common cause of water seepage through the wall-to-floor joint.
Cons of an Interior System
Doesn't Stop Water at the Source: This system allows water to enter the basement first before it's collected and drained. This is a point of concern for some homeowners, as the walls can still get damp.
Can Cause Interior Mess: While less invasive to your yard, the work inside the basement can be messy, creating concrete dust and requiring the temporary relocation of furniture and belongings.
Only Manages Water Under the Floor: It doesn't directly address water seeping through cracks higher up on the foundation wall, though it can be combined with other interior crack repair methods.
Cost Comparison: Interior vs. Exterior Weeping Tile
When it comes to cost, there's a clear distinction. An exterior weeping tile system is almost always the more expensive option due to the extensive excavation and labour involved. The price can be influenced by the size of your home, the depth of your foundation, and the complexity of the landscape. An interior system, being less labour-intensive and requiring no exterior work, is a significantly more budget-friendly solution for basement waterproofing.
Which System is Better for Your Situation?
The right choice for your home depends on a variety of factors. Here's a simple guide to help you decide:
Choose Exterior if...
You are building a new home. This is the standard for new construction for a reason; it's the perfect time to install a comprehensive system.
You are planning a major landscaping project or an addition to your home that will require excavation anyway.
Your home has a combination of serious issues, including an old, failed weeping tile system, multiple wall cracks, and a porous foundation.
Your budget allows for the more expensive, comprehensive solution.
Choose Interior if...
Your home is already built and you want to avoid damaging your landscaping, patio, or driveway.
Your primary water problem is caused by hydrostatic pressure forcing water in through the wall-to-floor joint.
You are working with a more limited cost budget.
You need a solution that can be installed quickly and at any time of the year.
You have a finished basement and are looking to install the system with minimal disruption to your home's exterior.
Can Interior and Exterior Systems Work Together?
Yes, they can. In some cases, a combination of an interior and exterior system can provide the ultimate protection. For example, if your exterior weeping tile system is partially working, but you're still getting water coming through the floor joint due to high hydrostatic pressure, installing an interior system can supplement the exterior system and provide comprehensive coverage.
Contact Foundation Fix Today
Ultimately, the best way to determine the right solution for your home is to get a professional assessment. A qualified waterproofing expert will be able to inspect your foundation, diagnose the source of the problem, and recommend the most effective and efficient weeping tile installation method to keep your basement dry for good.
Contact Foundation Fix today to discuss the best solutions for maintaining your home’s structural integrity.
